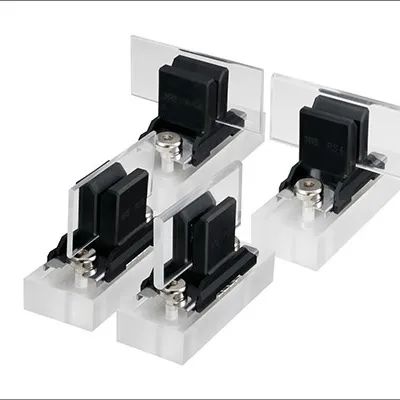

PS4 Series/High current copper bar connector

The characteristics of

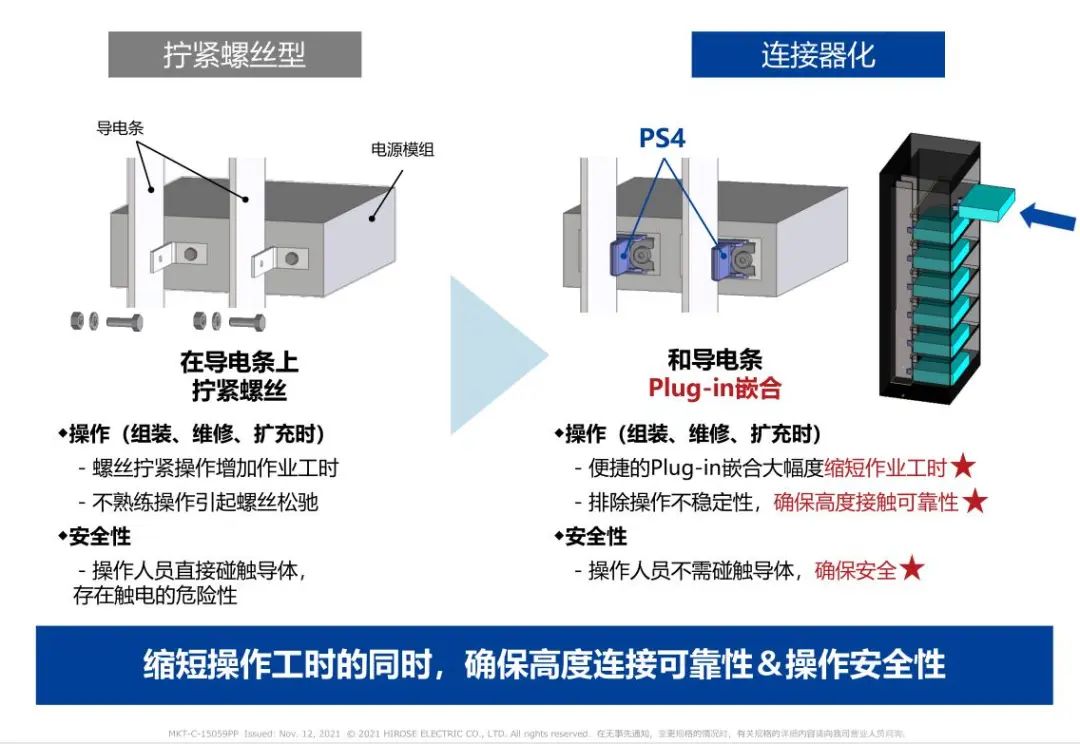

1. Plug-in connection to improve the operability of assembly, maintenance and module expansion, and improve the safety of operation.

2. The floating structure absorbs the position deviation between units ±2mm in the XY direction.

3. Rated current:

150A*
Corresponding copper bar thickness:
3mm or 0.125 inch (3.175mm)
300A*
Corresponding copper bar thickness:
6mm or 0.25 inch (6.35mm)

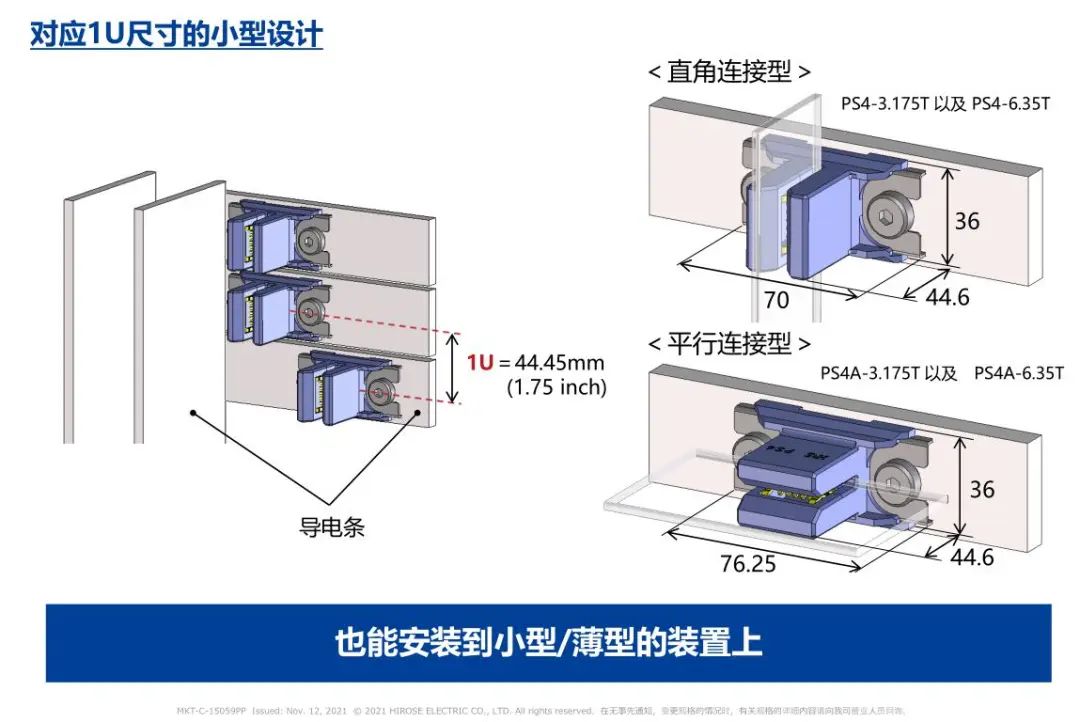

4. Compact design corresponding to 1U size frame

5. Configure most contacts in the power terminal to suppress the energized heat.

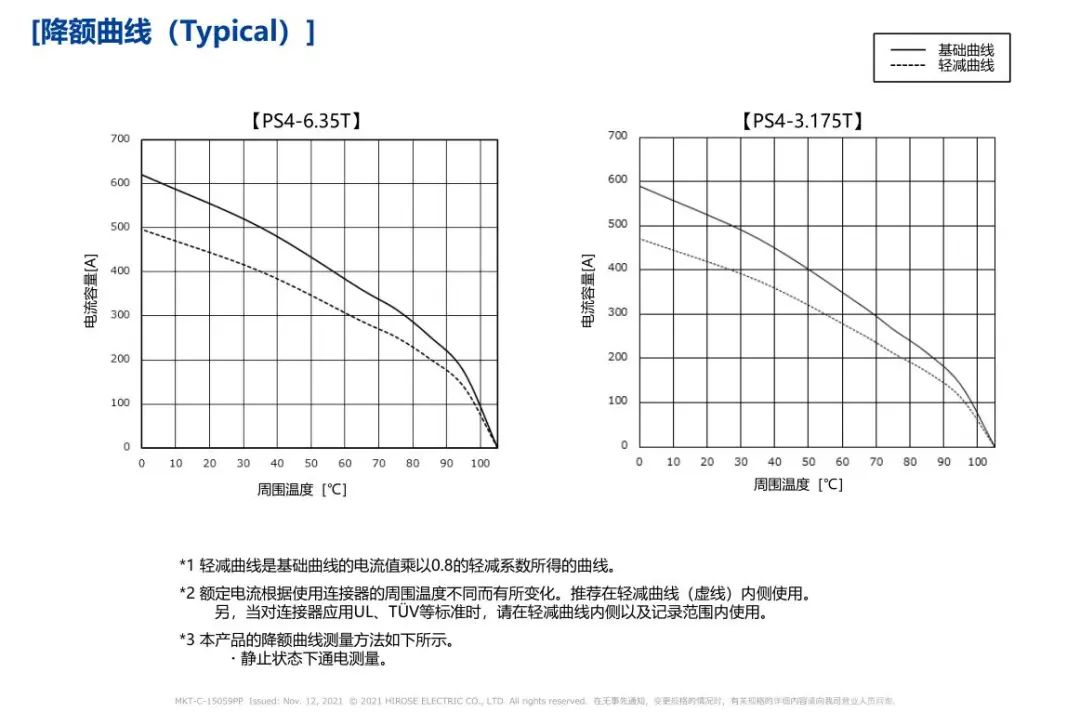

* Refer to the derating curve for values greater than the above.

Plug-in connectors improve assembly efficiency

Corresponding high current

Size

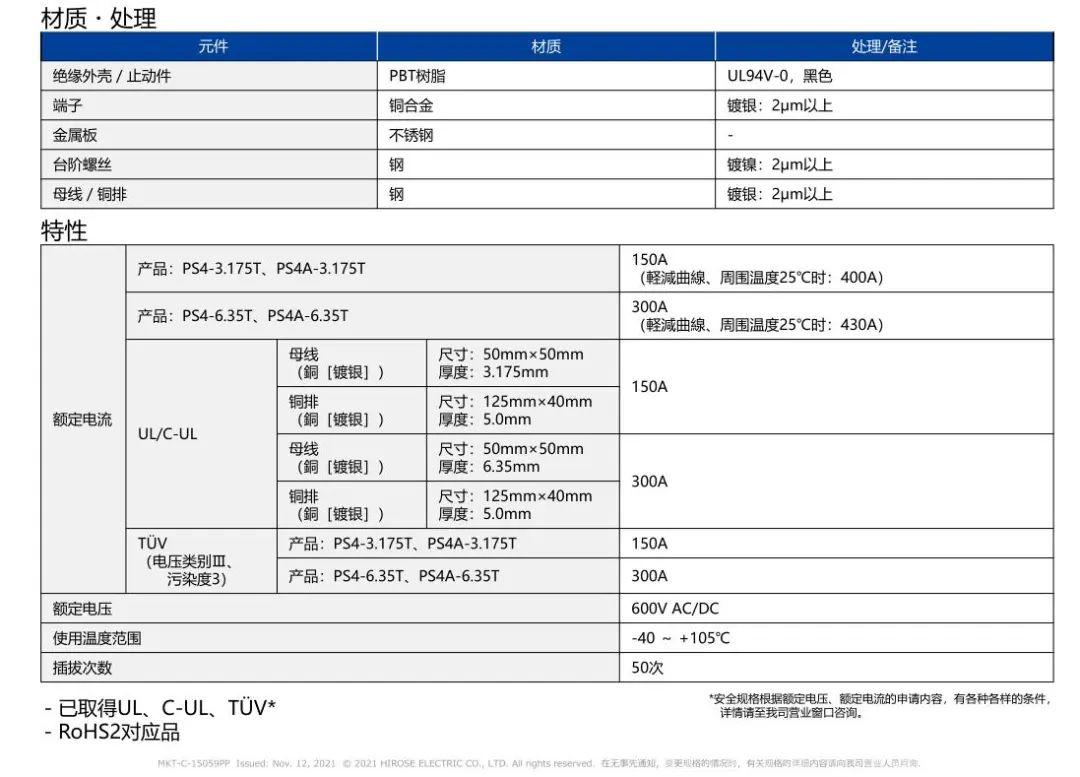

Specifications
